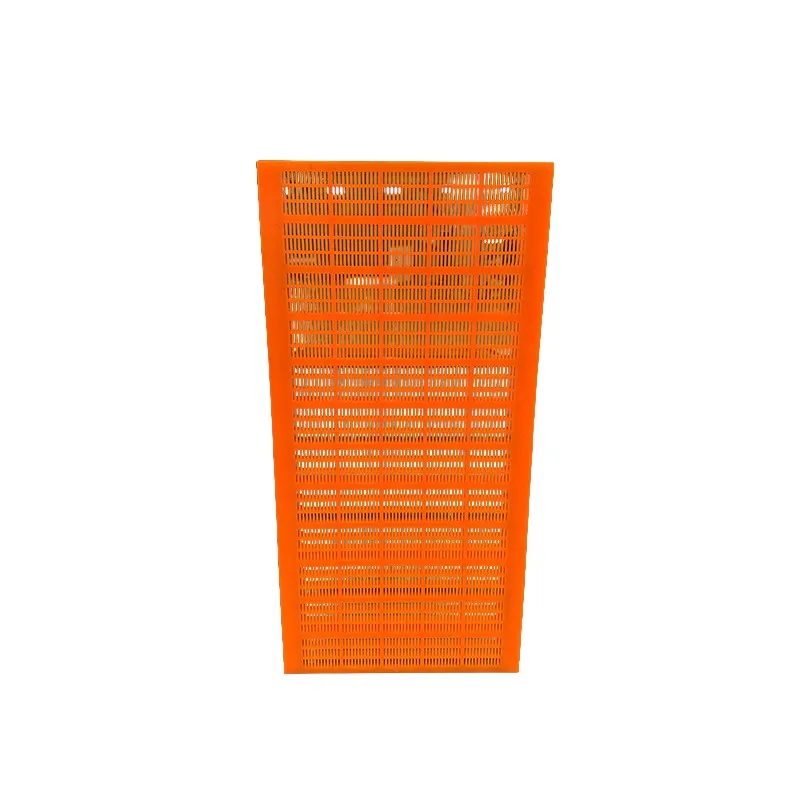

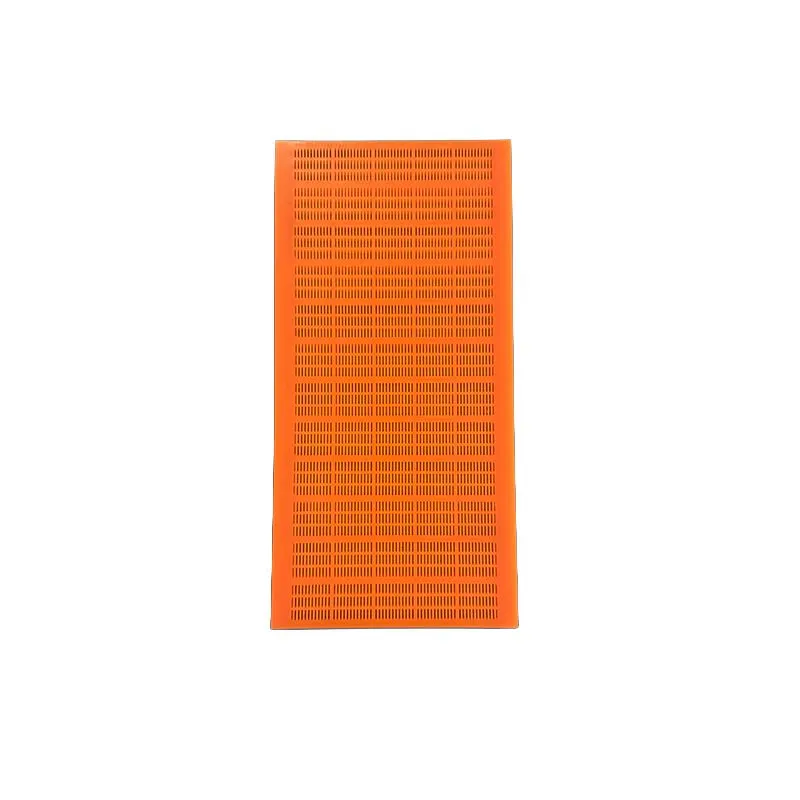

Polyurethane Fine Screen
Screen Down to 0.1 mm with High Precision
Metal screens cannot handle fine powders effectively-but our Polyurethane Fine Screen can. It is designed for mining, coal, chemical, energy, and construction industries. The screening range is 0.1 mm to 5 mm. We use precision hole punching and a high-density design. The smallest hole is 0.1 mm, and the classification error is less than ±5%. In metal mines, this screen reduces over-grinding and can increase your concentrate grade by 1–3 percentage points-real value added to your operations.
Better Wear Resistance by 15%
Made from 100% pure polyurethane (PU), with hardness of 75A–95A (ASTM D2240), this screen provides both elasticity and surface stiffness. Abrasion loss is ≤30 mm³ (DIN 53516), which is 15% better than regular PU. We use CNC laser molds and high-temperature casting to ensure smooth hole walls, free of burrs. The open area is 28%–32%, providing good material flow without compromising strength. Every batch is inspected with a 100× magnifier to ensure no connected holes or misaligned positions.
Parameter Table
|
Parameter |
Value |
|
Screening Range |
0.1 mm – 5 mm |
|
Classification Error |
≤±5% |
|
Grade Increase |
+1% to 3% |
|
Hardness |
75A–95A (ASTM D2240) |
|
Abrasion Loss |
≤30 mm³ (DIN 53516) |
|
Improvement |
+15% vs regular PU |
|
Open Area |
28%–32% |
|
Max Temperature |
120℃ |
|
Lifespan (Iron Ore) |
>5000 hours |
Real Test: 4600 Hours On Site
Our Polyurethane Fine Screen has six key advantages:
High wear resistance
Abrasion ≤30 mm³.
Heat resistance
Handles up to 120℃ without deformation.
Chemical resistance
Resists sulfides, chlorides, and weak acids.
High rebound
Elastic modulus 15–25 MPa for efficient particle passage.
Anti-blocking design
Helps fine particles pass easily.
Easy replacement
The modular interlocking design allows four workers to replace the entire screen in just 2 hours.
Field test at a Panzhihua mine: hole size 0.15 mm, throughput 100 tons/hour, lasted 4600 hours-8 times longer than metal mesh.
Certifications: ISO 9001:2015 and CE.
Sample lead time: 15 working days.
Payment options: RMB, USD, EUR.
