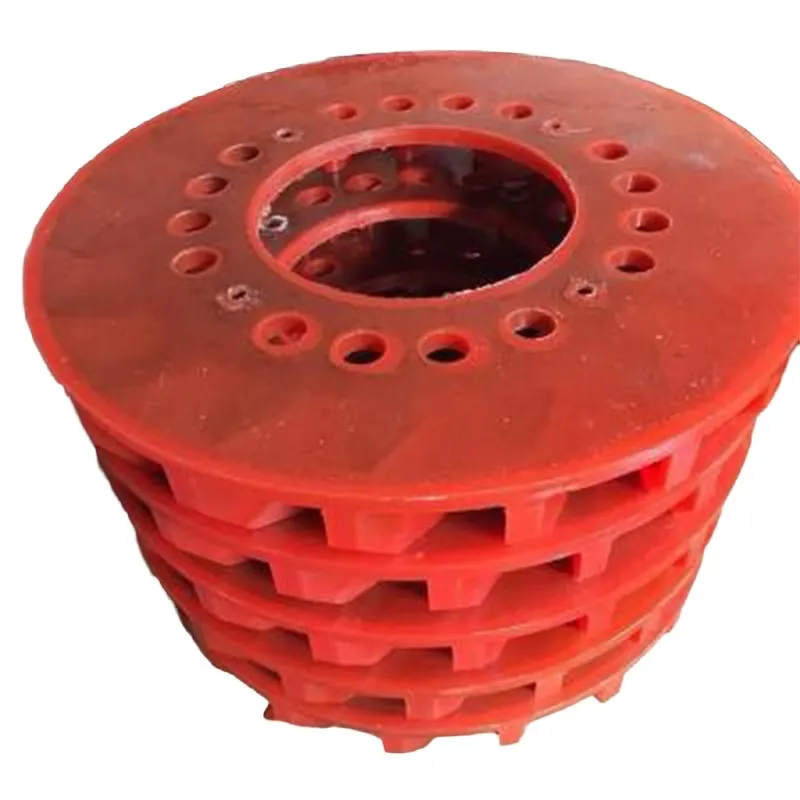

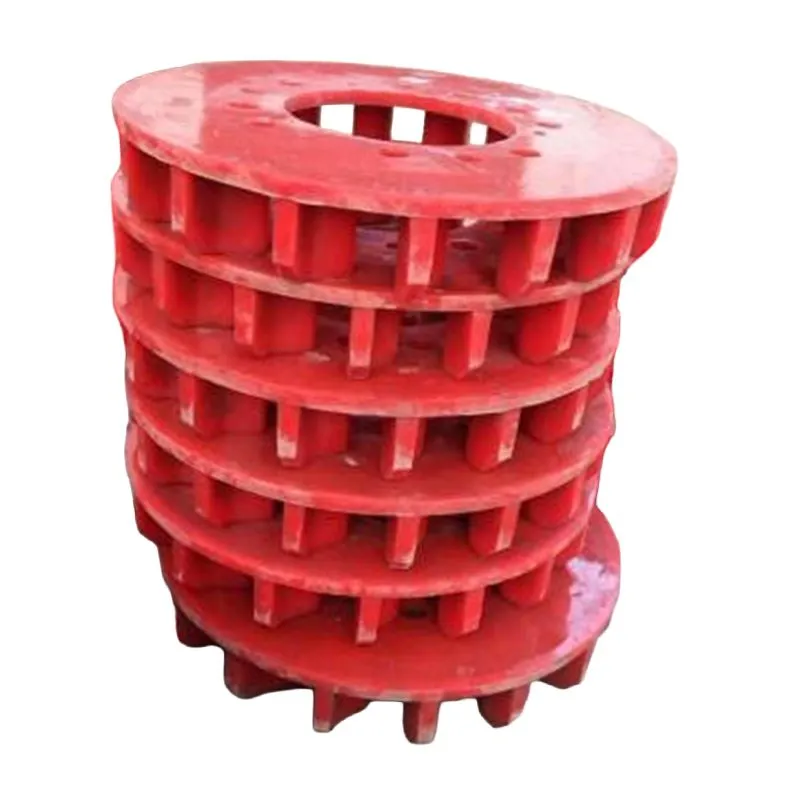

Flotation Wear Parts
2 to 5 Times Longer Life Than Rubber
Flotation machines wear their parts quickly. Our Flotation Wear Parts are essential spares for flotation equipment, including impeller covers, stators, rotors, and wear liners. These parts contact slurry and bubbles directly, enduring high-speed rotation and corrosion.
We use PU instead of rubber or metal, giving 2–5 times longer wear life. PU also prevents metal contamination in the slurry, which helps improve concentrate grade. Fits mechanical stirring flotation machines, air-inflation flotation machines, and flotation columns. Widely used in coal preparation and mineral processing plants.
Smooth Surface for 8–12% Less Energy
Crafted from flotation-grade PU, optimized for both abrasion and chemical corrosion:
- Hardness: 85A–95A (ASTM D2240)
- Abrasion loss: ≤30 mm³ (DIN 53516)
- Temperature range: -35 °C to 100 °C
- pH range: 4–12
- Slurry resistance: acids, alkalis, oils, and solvents
- Weight loss in slurry test: <1.2%
Using fluid-dynamic mold design, the surface is very smooth and streamlined, reducing slurry flow resistance. Key areas have embedded metal frames for installation strength. Every batch passes a slurry abrasion simulation test: 40% sand concentration, 300 rpm, 100 hours.
Parameter Table
|
Parameter |
Value |
|
Wear Life vs Rubber |
2–5 times longer |
|
Hardness |
85A–95A (ASTM D2240) |
|
Abrasion Loss |
≤30 mm³ (DIN 53516) |
|
Temp Range |
-35 °C to 100 °C |
|
pH Range |
4–12 |
|
Slurry Test |
40% sand, 300 rpm, 100 h |
|
Weight Loss After Test |
<1.2% |
|
Lifespan |
4000–7000 hours |
|
Energy Reduction |
8–12% |
|
Tear Strength |
>80 kN/m |
No Metal Contamination for Better Grade
Key strengths:
High wear resistance
≤30 mm³ abrasion loss, 4000–7000 hours lifespan
01
No metal contamination
PU does not release metal ions, protecting flotation chemicals and concentrate grade
02
Chemical resistance
Handles xanthate, No. 2 oil, copper sulfate, acidic or alkaline slurry
03
High hydraulic efficiency
Smooth, streamlined surface reduces flow resistance, saving 8–12% energy
04
Easy maintenance
High rebound, high tear strength, simple to replace
05
Custom service: Flotation machine model, wear part type, and size are customizable.
Factory: 10,000 m², 38 staff, with R&D team.
Certifications: ISO 9001:2015, China Heavy Machinery Industry Association
Warranty: 6 months
Minimum order: 1 piece
Sample: Available for free
Currencies: RMB, USD, EUR
Trade Terms: EXW, FOB, DDP
